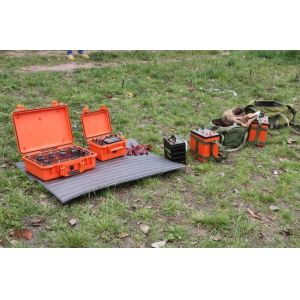

Application:
1. Water resources, metal and nonmetal mineral resources detection
2. City geophysical exploration, railway and bridge inspection
3. Hydrology and engineering geology as inspecting dam base and
flood protection levee for incipient faults
4. Geothermal prospecting
Function:
1. 1D resistivity sounding
2. 1D induced polarization sounding

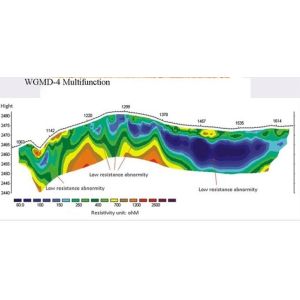

3. 2D Electrical resistance tomographic
Main Features:
1. Transmitting unit and receiving unit are of all-in-one design,
portable and lightweight.
2. Super high-power, high anti-interference performance and
precision: up to 6600w (1100v×6A) power, 48Vp-p voltage range
ensures to get a good result in a area with high resistance.
3. Automatically achieving compensation of self-potential, drift
and electrode polarization, up to ±10V.
4. Receiving unit support transient over-voltage protection,
transmitting unit supports over-voltage protection, over-current
protection and AB open-circuit protection.
5. For general resistivity and IP survey function, 9 types of
electrode arrays are available. Electrode distance (namely
“Program”) can be inputted or called. Geometric factor K can also
be generated automatically or calculated manually.

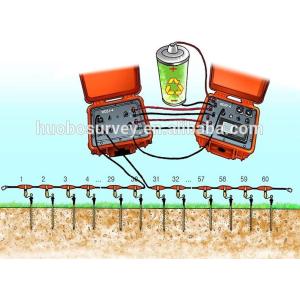

For multi-electrode 2D resistivity imaging, up to 18 electrode
arrays are available. It could scanning measure according to fixed
section (including AMNB, ABMN, AMBN, AMN, MNB, A-MN-B, Sp M, Sp MN,
charge M, charge MN) or continuous rolling scanning measure
according to variable section (including A-M, A-MN, AB-M, AB-MN,
MN-B, A-MN rectangle).
1. Program: the program can memorize 100 groups of electrode
distances, avoiding repetitive input. Or you just input a program
Id and step to call the corresponding electrode distances.
2. Earth resistance inspection: ground condition can be inspected
at any time.
3. Mass data storage: Up to 1GB capacity (extended) enable store
5,000,000 groups measuring data (including current, voltage, SP,
Ro, Ms, metal factor, TH, R, J).
4. All parameter and data are under power-failure protection; and
thus data will not be lost even thought the system shuts down
accidentally.
5. USB port enables it to transfer data to computer.
Technical specification:

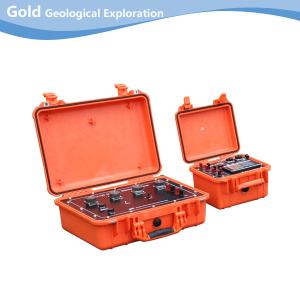

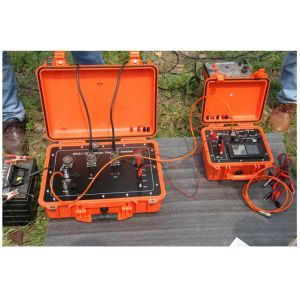

WDJD-4 Res/IP Meter
Receiving
Voltage precision ±24V, ±0.4% ± 1LSB, 24 bit A/D
Input impedance ≥50MΩ
Apparent polarizability precision ±1% ± 1LSB
SP compensation range ±10V
Current channel 6 A, ±0.4% ± 1LSB, 24 bit A/D
Resolution Voltage: 0.1 micro volt; Current: 0.2 micro ampere.
Suppression ≥80dB for 50Hz industrial frequency (common mode
interference or differential mode interference).
Transmitting
Max transmitting power For general Res/IP sounding, 6600W.
For multi-electrode Res imaging, 1125W, limited by WDZJ-4 switcher
For Res cable, 1350W
For IP cable, 2400W
Max voltage For general Res/IP sounding, ±1100V (2200V peak to
peak)
For multi-electrode Res imaging, 450V DC (limited by WDZJ-4
switcher)
Max current For general Res/IP sounding, ±6A
For multi-electrode Res imaging, 2.5A DC (limited by WDZJ-4
switcher
Pulse width 1~60s, duty ratio 1:1
Others
Display 160 × 160 dot matrix LCD
Storage ≤1GB
Working temperature -10°C~+50°C, 95 %RH
Storage temperature -20°C~+60°C
Instrument power internal 12V 9Ah rechargeable battery , lasts for
30 hours (or 12V external power supply)
Weight ≤ 4.4 Kg
Dimension (L×W×H) 270mm X 246mm X 175mm
WDZJ-4 Switcher
Max electrode connected 60 and 120 (for option)
Insulation impedance ≥500MΩ
Max working voltage 500VDC
Max working current 2.5ADC
Power supply Internal 7.4V 4AH rechargeable lithium battery, last
for continuously 25 hours work
Working temperature -10°C~+50°C
